Best VM for Dataframe operations

There many options for running ETL code with GPU acceleration, for example:

If you’re considering adopting one of these frameworks for your cloud environment, one of the first questions you’ll encounter is: which VM is the most cost-effective for my workload?

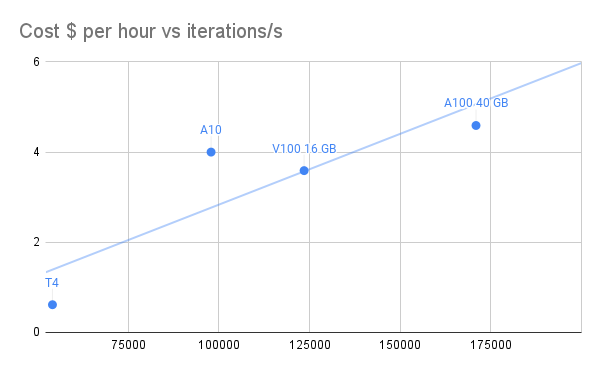

Performance versus Cost

Among the CompuBench tests, the “N-Body simulation” benchmarks are likely the most relevant for predicting cuDF performance. These tests involve complex calculations and data manipulations similar to operations performed in cuDF, which is designed for data frame manipulation and analysis.

I also briefly considered pricing for other cloud providers; differences are minor and I’m most familiar with Azure. All prices are Azure $ per hour pay-as-you-go UK South.

GPU	SKU	Instance	$ per hour	iterations/s	iterations/h	$/billion iterations
T4	NCas_T4_v3-series	NC4as T4 v3	0,615	54082	194695200	3,158783576
V100 16 GB	NCv3-series	NC6s v3	3,589	123497	444589200	8,072620747
A100 40 GB	NC A100 v4 series	NC24ads A100 v4	4,590	170915	615294000	7,459848463
A10	NVads A10 v5 series	NV36ads A10 v5	4	97834	352202400	11,35710603

The T4 is most likely the most cost-effective for our application, with the A100 coming in second.

Closest Alternative to T4

We can look at the closest non-GPU backed alternative to the T4 with 4 vCPUs, 28 GiB memory and 180 SSD GB storage, eg. Standard_D12_v2 with 4 vCPUs, 28 GiB memory and 200 SSD GB storage at $0.4690/hour.

Yifeng Jiang achieved a 4x performance increase with GPU-accelerated Spark-Rapids on an A10. Of course, the A10 is a more performant machine.

Let’s assume we can extrapolate the performance of the T4 versus the performance of the A10 on the Nbody benchmark to dataframe processing.


A10 performance multiple on dataframes	4
A10 performance on N-body simulation	97834
T4 performance on N-body simulation	54082
T4 performance multiple on dataframes	2,211174029
Cost Ratio NC4as T4 v3 versus Standard_D12_v2	1,31130064
Cost effectiveness of NC4as T4 v3	1,68624491
Cost reduction per compute unit	40,70

Assuming the NC4as T4 v3 performance can be generalized from the Nbody benchmark, it would perform 121% faster on dataframe processing, at 41% reduced cost per iteration.

Scaling Unit

For all but the largest workloads, we want to make sure our cloud infrastructure matches our compute workload as it varies throughout the day. Having a smaller scaling unit reduces our chances of being overprovisioned often.

Future Proof

The T4 has been around since 2018, but there are no plans to discontinue the NCas_T4_v3 offering.

GPU	Release by Nvidia
V100 16 GB	June 21, 2017
T4	September 12, 2018
A100 40 GB	May 14, 2020
A10	April 12, 2021

Power Efficiency

The T4 is designed for efficiency and has a lower power draw compared to the A100. This could be a consideration if power consumption and heat generation are concerns in your deployment environment.

Sources

Benchmarks from Compubench, N-Body simulation – 1024k.
Nvidia release dates from wikipedia
